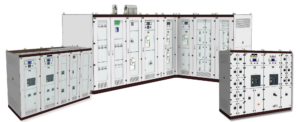

Main Switchboard

  • Main Switchboard (MSB) is the incoming component of low voltage systems, and this is the most important factor in a power distribution network.

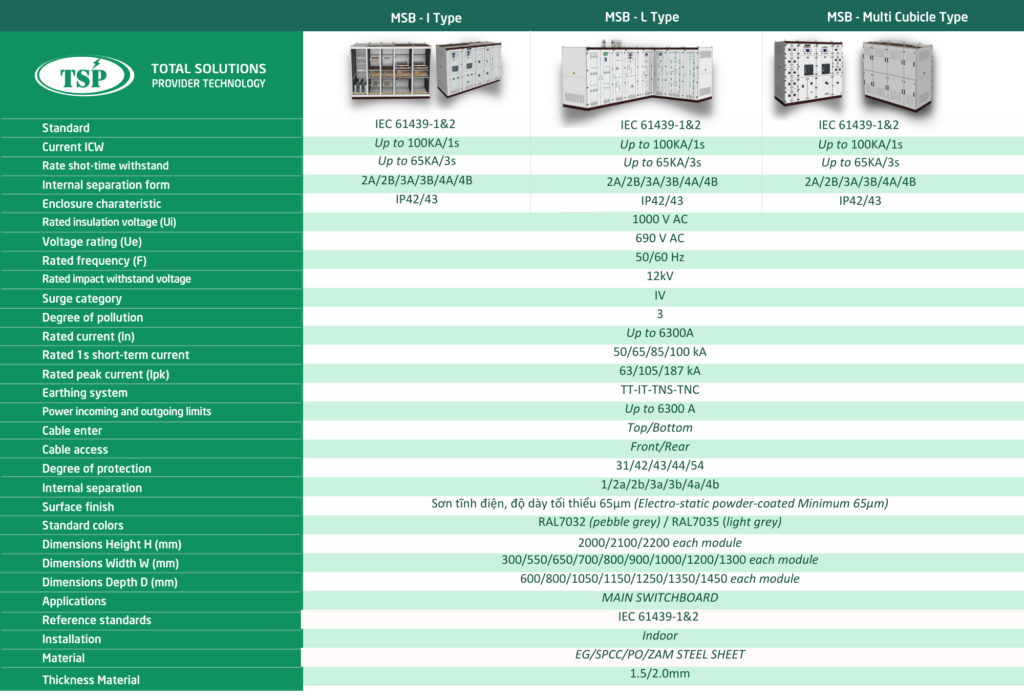

    TSP is able to design and tailor-make a full range of Main Switchboards from 630A to 6300A.

FEATURES
  • Product surfaces are zinc or electro-powder coated under a strict quality assurance process to ensure a long product life and excellent durability.
  • Doors, ingress protection degree are designed and offered as an option up to IP43 (indoor use).
  • Busbar components are optimally arranged for convenient installation and operation.
  • Heavy-duty hinges, locks, and other accessories are carefully selected and standardized to ensure both consistency in appearance and operation.
  • We produce and test our products in accordance with IEC 61439-1 & IEC 61439-2.
benefits
  • All structures are made from imported steel sheets from international firms. The steel sheets are produced according to the following industrial standards: JIS G3141 (Japan), EN10142 (Europe), and ASTM A653/A653-08 (America).
application
  • Main Switchboard is installed in the master electrical chamber of your industrial or civil project. This may be a factory, industrial workshop, business building, condominium building, hospital, or any other large-scale project.
  • Main Switchboard is arranged after the transformer and before the distribution board.
  •
