AIR HANDLING UNIT

The AHU (Air Handling Unit) is a core component of central air conditioning systems, responsible for regulating temperature, humidity, and indoor air quality. At B&A, we develop and manufacture a diverse range of AHU products (including HEX, DRC, DHU, EGT, WHC, DDHU) to flexibly meet specific design, functional, and technical requirements of each project.
B&A’s AHU systems are widely applied in industries that require strict environmental control such as pharmaceutical factories, hospitals, cleanrooms, shopping malls, cosmetics production, electronics, food processing, and other clean industries. With high customization capability, durability, quiet operation, and optimized design, B&A AHUs are a reliable choice for projects that demand top-quality performance and efficiency.

FEATURES

  • Frame: Thermal Break Aluminium Frame
  • Panel: Double skin painted galvanized – 0.52 mm, thermal insulation material is PIR (Polyisocyanurate) foam with density 40kg/m3, thickness 50mm.
  • Coil: Copper tubes, aluminium fin, large capacity range.
  • Fan: EC Fan
  • Filter: Pre-filter (G4), bag filter (F8).
  • Optional devices: Electric heater, humidifier, eliminator, air damper, etc.
  • They can be added to the air handling units according to different requirements.

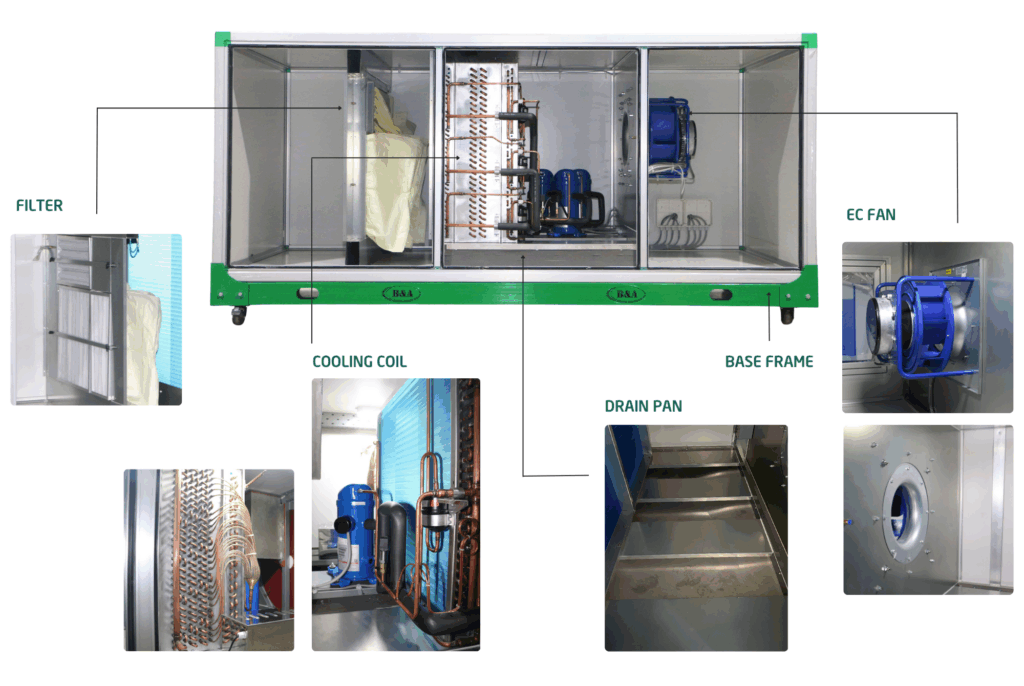

Structure of AHU:

• Bag Filter
• Cooling coil
• Drain Pan
• EC Fan
• Base Frame

BENEFITS

  • A Swift Solution: Due to having a fixed set of features, standard AHUs can be produced for significantly shorter lead times for customers.

  • Simple Specification: With a standard solution, you are presented with a set of features which meet with general requirements for mechanical ventilation, well ahead of a project taking place.

APPLICATION

  • STD AHU is used extensively for all types of non-residential, commercial, residential, hospitality, energy, industrial, …
